Using CDL datasets on HPCs (CDL cache hydrator)

The CDL service allows users to store datasets to be shared within and across projects on NIRD as a centralized repository.

The CDL Cache Hydrator functionality in CDL maintains a local cache of datasets on the HPC system’s local filesystem by pulling the needed datasets from NIRD through S3. Cached data can be rehydrated at any time. Also, the service is envisioned so that data not being accessed for the set retention time will be automatically evicted from the cache.

At a glance

  • What it does: copies your input data from NIRD to /cluster/cache/<service>/ on the HPC system.

  • How you use it: put a small request file (.conf) in /cluster/cache/conf/.

  • What you get: a read-only copy of the data for your jobs.

  • How long it stays: until nobody has used it (access) for 45 days(currently). You can refresh the cache again at any time.

  • Before you can use it: the CDL Project Leader must request to enable the cache hydrator for the HPC system you use by.

  • Please: request only what you need. The cache is shared with everyone on the system.

How it works

  1. The master copy of the data is kept on NIRD through the NIRD CDL Service and exposed through the S3 bucket.

  2. You place a request file (.conf) in /cluster/cache/conf/ on the HPC system.

  3. The hydrator reads your request, copies the data from NIRD over S3, and saves it in /cluster/cache/<service>/.

  4. Your jobs read the data from there. The cache is read-only.

  5. Data that nobody has used for 45 days is removed from the cache. The master copy on NIRD is not affected, and you can request the data again at any time.

  6. PI and designated data manger have write access to manage the master copy on NIRD.

For Project Leaders: enable the hydrator

The hydrator is not turned on automatically. As the Project Leader of a CDL project, you decide which data can be cached and where. Specify the S3 bucket and access policy and HPC systems where the hydrator should be available during the allocation process or contact the support afterwards with following information.

  1. Your CDL project, for example NS16003B.

  2. The S3 bucket to cache. Request an S3 bucket for your CDL project, named cdl-nsxxxxb-<bucketname> (lowercase), for example cdl-ns16003b-wrf. The hydrator can only copy data that is in an S3 bucket.

  3. The HPC systems where the data should be available: Olivia, Betzy and/or Saga.

When the setup is done, the folder /cluster/cache/<service>/ appears on each system you asked for.

CDL project registered on NIRD

Each CDL project has its master copy on NIRD Data Lake which is accessible via both POSIX and S3 protocols (NFS access is also available).

These projects are called with the following naming format NSxxxxB (e.g. NS16003B). Each project is available read-only to any POSIX user having access to NIRD and users having access to the S3 endpoint on NIRD, https://s3.nird.sigma2.no.

Each CDL project has a curresponding S3 bucket following the naming format cdl-nsxxxxb-service, e.g. cdl-ns16003b-wrf. Note that the bucket name uses lowercase and the project name must match exactly even though it is in lowercase.

For users: get your data in 6 steps

Step 1. Check that the hydrator is enabled on your system.

$ ls /cluster/cache/<service>

If you don’t see your bucket name/service name (for example wrf), the hydrator isn’t enabled on this system. Request the CDL Project Leader to enable it For Project Leaders: enable the hydrator .

Step 2. Copy the template.

$ cp /cluster/cache/conf/00-cdl-hydrator.template ~/<servicename>-<username>-<nnn>.conf

Step 3. Edit the file to say which data you need. See Writing a request file.

Step 4. Send the request by copying the file into the request folder.

$ cp ~/wrf-nn9999k-case01.conf /cluster/cache/conf/

Step 5. Check that the data has arrived before you submit your job.

Eg:

$ cat /cluster/cache/conf/<servicename>-<username>-<nnn>.json   # status and log
$ ls /cluster/cache/<servicename>/          # the data itself

When the hydrator has finished, it renames your request file to show the result:

  • .done: all data was copied. For example, wrf-nn9999k-case01.conf becomes wrf-nn9999k-case01.done.

  • .fail: some or all of the data could not be copied. Check the .json log file to see why.

Step 6. Run your job using the cached data. Use the cache path correctly in your job script.

The cache is managed automatically by the cdl_cache_cleanup process, which evicts data that has not been accessed within the current retention period

Storing results

When the job completes, copy or stage your results to the appropriate project storage. The recommended destination is uour project area on NIRD Data Peak or NIRD Data Lake.

Writing a request file

Name it correctly

Config file names must follow a strict convention or the hydrator will silently ignore them:

  • The name must start with the CDL service name, (for example wrf or noresm),

  • This must be followed by a descriptive identifier such as your project name, or username, or optionally sync job number.

  • The file must end with the .conf extension. Files with any other extension will be ignored.

  • Correct: wrf-case-01.conf or noresm-username-dataname.conf

  • Incorrect: my-data.conf or wrf-project-01.txt - the CDL Hydrator will ignore these files

Choose what to cache

You can ask for a whole folder or for specific files. Use one of these options in each request file, not both.

Option A: a whole folder

Use this when you need everything in one folder. Subfolders are included.

Example Config (wrf-case-01.conf):

[SYNC]
s3_endpoint = s3://open-data-bucket/
target_path = 2026/march/observations/*
# Optional tuning parameters:
nr_workers = 32
log_level = info

A TOML template file, called 00-cdl-hydrator.template is created for convenience.

The data keeps its folder structure, so it ends up in /cluster/cache/wrf/2026/march/observations/.

Option B: a few specific files

For experiments needing a defined set of files, spread across different directories, where pulling whole trees would be wasteful. In such case, the specific file path can be specified as follows in the conf file, as shown in the example below. In this case conf file must contain a [FILES] section.

Example Config (wrf-case-02.conf):

[SYNC]
s3_endpoint = s3://open-data-bucket/
# Optional tuning parameters:
nr_workers = 32
log_level = info

[FILES]
paths =
    geog/topo_30s/const_2t.dat
    wps/2026/03/met_em.d01.2026-03-01_00.nc

When 100+ files, the recommended way is to create plain text file containing the file path and use that in the conf to pull the data.

Example Config (wrf-case-03.conf):

[SYNC]
s3_endpoint = s3://open-data-bucket/
# Optional tuning parameters:
nr_workers = 32
log_level = info

[FILES]
manifest = /cluster/projects/nn9999k/case-01.filelist

manifest must be in absolute path. The filelist case-01.filelist is the plain text, one object key per line, relative to s3_bucket. Blank lines and # comments are ignored. An example line in case-01.filelist is given below.

geog/topo_30s/const_2t.dat

Field reference:

  • s3_endpoint (required): The URL of the CDL project S3 bucket.

  • target_path (required for Mode 1): The path to synchronise. Glob patterns are supported (e.g. * matches all files in that directory).

  • nr_workers (optional): Number of parallel download workers. Default is 32. Increase for large datasets to speed up the transfer. We do not advise exceeding 128 parallel workers as it may impact the performance on the HPC storage system.

  • log_level (optional): Logging verbosity. Accepted values: info, warning, error. Default is info.

Verifying cached data

After placing a config file in /cluster/cache/conf, the hydrator will detect it and begin downloading the requested data. To confirm that data has been successfully cached before submitting your job:

  • Check the cache directory directly ls /cluster/cache//

  • You can check the <your-config.filename>.json file with log info

Using cached data in your job

Read input from the cache. Write output to scratch. Eg: below :

#!/bin/bash
#SBATCH --account=nn9999k
#SBATCH --job-name=wrf-case01
#SBATCH --time=12:00:00

INPUT=/cluster/cache/wrf/2026/march/observations   # read-only cache
OUTPUT=/cluster/work/projects/nn9999k/wrf-case01   # scratch  storage

mkdir -p "$OUTPUT"
# ... run your model, reading from $INPUT and writing to $OUTPUT ...

When the job is done, copy any results you want to keep to your project storage, for example NIRD Data Peak.

Please use the cache fairly

The cache is on a disk that everyone on the HPC system shares. Very large or repeated requests fill it up and slow it down for all users.

✅ Please do

❌ Please don’t

Ask only for the folders or files your jobs need

Cache the whole bucket “just in case”

Check whether the data is already cached first

Send the same request again and again

Send requests before you submit jobs

Put requests inside job scripts

Keep nr_workers low

Use the cache as scratch or general storage

When the data on NIRD changes

Updating the data on CDL: The project leader and any designated member can add data and manage the data in the CDL project. All other NIRD users have read-only access either through file storage access or object storage access. The master copy can be updated either using regular POSIX commands on the NIRD login nodes (login.nird.sigma2.no) via SSH access, or using S3 account with read-write role, from the same https://s3.nird.sigma2.no endpoint.

Getting the new version into the cache. The cache does not update itself. To fetch the new version, copy your .conf file into /cluster/cache/conf/ again, or create a new one.

Frequently asked questions

Getting started

Q: What is the difference between CDL and the cache?

  • The NIRD Central Data Library (CDL) service is a central storage resource and data management system on NIRD, maintaining the master copy of the dataset(s) that is preserved and managed. The cache provides a temporary local copy on an HPC system, created solely to allow jobs to read data more quickly.

  1. Who can turn on the hydrator?

  • System admin enables the hydrator following the request of the Project Leader of the CDL project. They request an S3 bucket and choose which HPC systems get the cache.

  1. Which HPC systems support it?

  • Olivia, Betzy and Saga. For each bucket, the cache is only available on the systems the Project Leader asked for. Run ls /cluster/cache/ to check.

  1. Do I have to be a member of the CDL project?

  • No. When the hydrator is enabled on a system, all users of that system can read the cached data and request data from the bucket.

  1. Do I need an S3 account to use the cache?

  • No. The hydrator fetches the data for you. You only work with files on the HPC system.

Requesting data

  1. How long does it take before my data is ready?

It depends on how much data you ask for. Small requests are usually quick, large ones take longer. When the hydrator has finished, it renames your request file to show the result:

  • .done: all data was copied. For example, wrf-nn9999k-case01.conf becomes wrf-nn9999k-case01.conf.done.

  • .fail: some or all of the data could not be copied. Check the .json log file to see why.

  1. Can I ask for the whole bucket?

  • Only if your jobs really need all of it. Large requests affect everyone on the system. Ask for specific folders or files instead.

  1. Someone else already requested the same data. Do I need to request it too?

  • No. If the data is already in /cluster/cache/<servicename>/, you can use it right away.

  1. My request file is ignored. Why?

  • Most likely the name is wrong. Check the naming convention.

  1. What should I set nr_workers to?

  • Leave it at the default (32) for small requests. For large transfers, a moderate value like 64 is usually enough. We do not advise exceeding 128 parallel workers as it may impact the performance on the HPC storage system.

Using and keeping data

  1. Can I write to the cache?

  • No. It is read-only. Write your results to your own NIRD CDL area. Only PI and designated data manger have write access to manage the master copy.

  1. What happens after 45 days?

  • Data that nobody has used for 45 days is removed from the cache. The master copy on NIRD is not affected, and you can request the data again at any time. Please note that the current retention time is 45 days, it can change in the future.

  1. The data on NIRD was updated. Do I get the new version automatically?

  • No. Copy your .conf file into /cluster/cache/conf/ again, or create a new one.

  1. Should I delete my request file?

  • Yes. Delete it from /cluster/cache/conf/ when you no longer need it, to keep the shared folder tidy.

Getting help

  1. Who do I contact if something goes wrong?

  • Contact support. Include the name of your request file and the contents of its .json file.

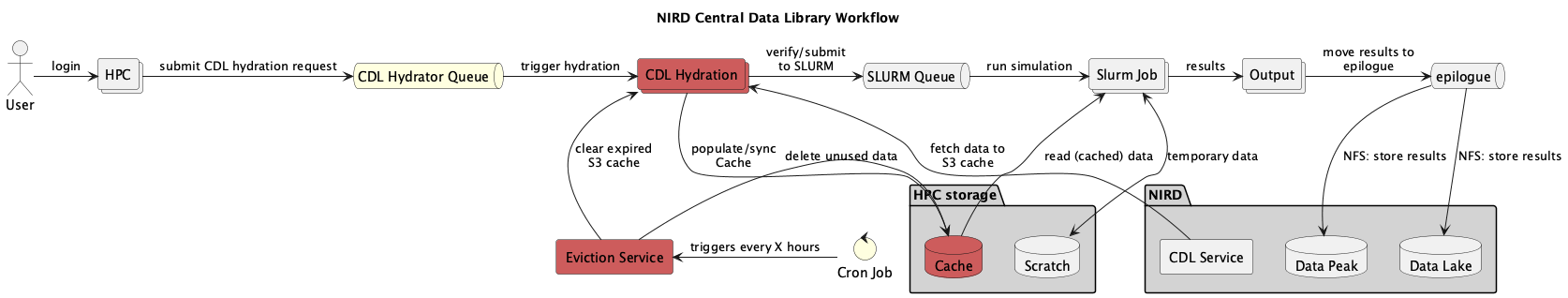

CDL caching diagram

CDL data caching on hpc pipeline
